Brand Name : Esdlumen
Model Number : Wing3
Place of Origin : China
MOQ : 1
Payment Terms : Western Union,T/T,D/A,L/C,D/P
Delivery Time : 5-8
Packaging Details : flight case
| Specification | Details |
|---|---|
| Pixel Pitch | 3.91 mm |
| Panel Size (W x H x D) | 500 x 500 x 68 mm |
| Panel Diagonal | 707 mm |
| Panel Resolution | 128 x 128 pixels |
| Pixel Density | 65,536 pixels/m² |
| Panel Area | 0.25 m² |
| Panel Weight | 6.4 kg |
| Module Size (W x H) | 250 x 250 mm |
| Modules/Panel (W x H) | 2 x 2 |
| LEDs per Module | 4,088 |
| Power Used (max) | 115 Watts/Panel, 460 W/m² |
| Power Used (avg) | 35 Watts/Panel, 140 W/m² |
| Line Voltage | 100 - 240 Volts |
| LED Type | SMD 2121 |
| Brightness | 1000 nits (max) |
| Gray Scale | 16 bits |
| Viewing Angle | 160°/120° (H/V) |
| LED Refresh Rate | 1920 Hz |
| IP Rating | Indoor, IP20 front, IP20 back |
|
|

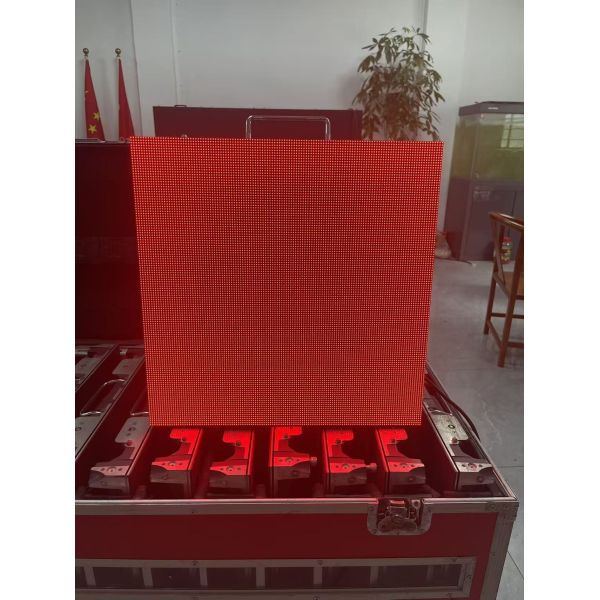

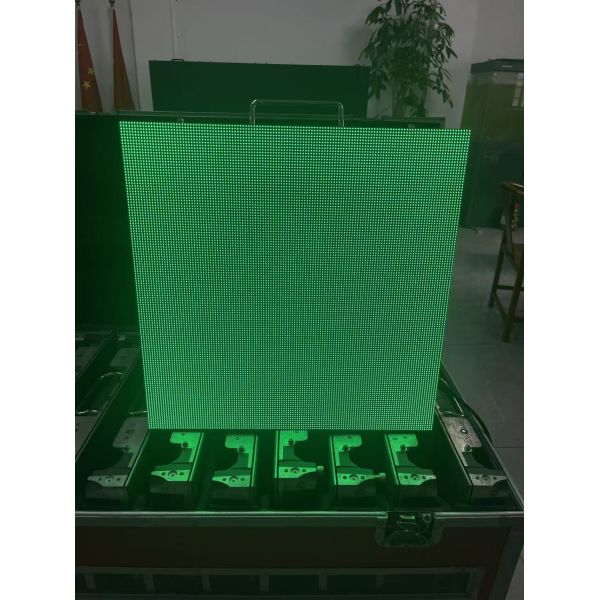

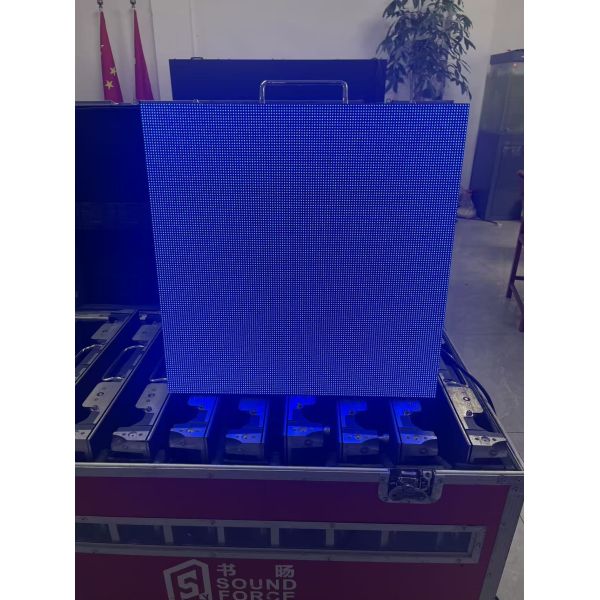

Esdlumen P3.91 wing3 Indoor Screen Images |
